Shift Registers

Task description

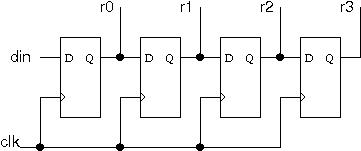

In this section you will be shown how to model a shift register properly as well as how to make registers and wires properly. Consider an example of shift register given in Figure 1. This requires a serial input which is shifter at every clock cycle. we will use this example to understand how to design shift register properly.


Shift Register
figure 1

For this lab you will need following set of codes
  1. shr1_tb.vhd test bench for the shift register in tast 1
  2. shr1.vhd shift register in task 1
  3. shr2.vhd shift register in tast 2
  4. shr2_tb.vhd test bench for the shift register task 2

Tasks

  1. Download the shift register files, read shr1.vhd and simulate it using the provided testbench shr1_tb.vhd.
    1. As it can be seen from the simulation that it is behaving as a wire rather then a register. This is because it lacks a clocked body.
    2. Add clk signal in the process sentitiveity list
    3. Add the contents of the body of the process p_shr in a if condition which works on the case "rising_edge(clk)". This will convert all the signal assignments into registers.
    4. simulate the design again. and check if it behaves as a shift register now?
    5. as you can see it still does not behave as a shift register. Explain why?
    6. Make the required change to the process and simulate it. verify if the code simulate
  2. Download the shift register files, read shr2.vhd, shr2_tb.vhd.
  3. As it can be seen from simulation, this shift register shifts a value everytime the enable signal goes from zero to one. Synthesize it using ISE and connect enable signal to one of the button on the FPGA.
    1. make a UCF file binding enable signal with the Button pin(see FPGA manual for the correct pin).
    2. synthesize and map it to the FPGA.
    3. Test if it works properly. Explain why the shifter jumps multiple times in reality while it skips once in simulation.
  4. Build a debounching circuit

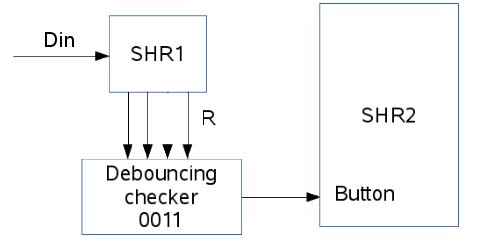

    1. Reuse the fixed Shift Register in example one to build the debouncing circuit. as shown in the following diagram
      Debouncing Circuit
      figure 1

    2. Test if it works.
      1. - no? make the shift register wider and try again
      2. - yes, explained what happened here.
